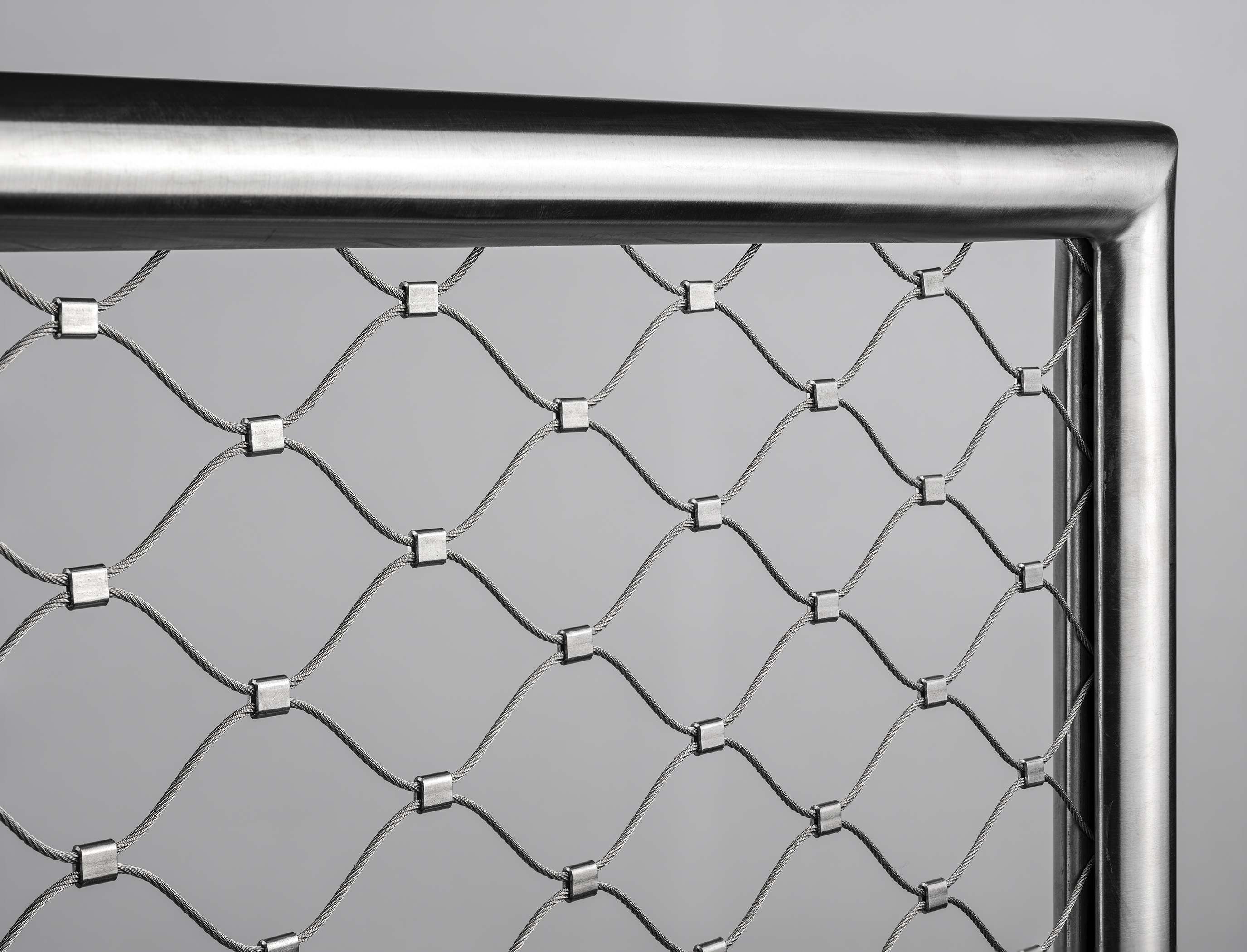

Slotted Round Frame System

Manufactured from Ø26.9x1.5mm slotted stainless steel round profiles, inoxnet® slotted round frame systems boast an aesthetically pleasing design. The seamless integration of a concealed installation rope within the slotted tube frame enhances the overall visual appeal, adding to the system's elegance.



Tube Dimensions
Ø26,9x1,5mm

I-NET® Cable Mesh Opening
Rope diameter,1,5mm and 2mm
Balustrade Systems, 25-80mm

I-NET® Cable Mesh Diamond Direction
Horizontal and Vertical

Frame Finishes
Satin finished
Mirror polished
Custom RAL codes upon request

Additional Features:
Hidden installation ropes
No irritation when handling

Limitations
Limited geometry
Limited choice of net dimensions
Higher corrosion risk
(Deposits inside the frame profile could contribute to corrosion issues over time)
